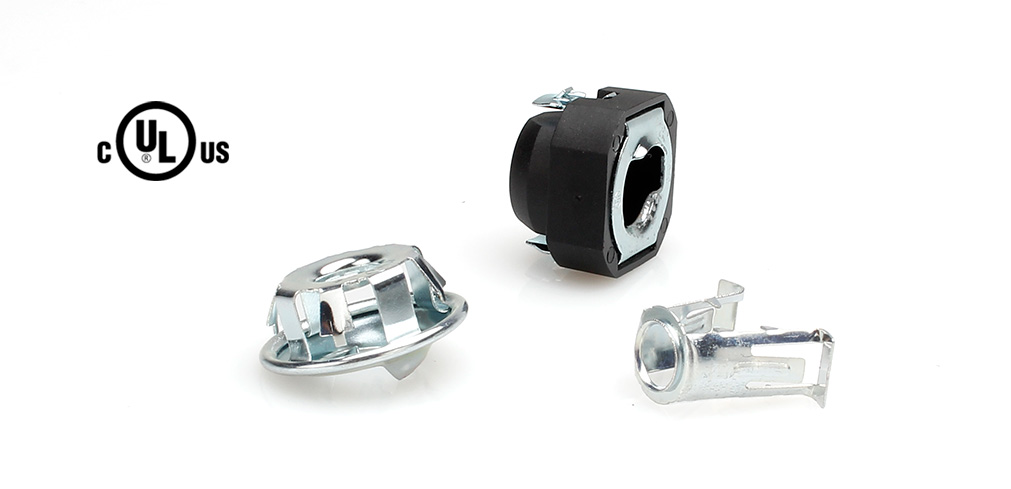

Bx-Flex Conduit Fitting, Screw On Type

Bx-Flex Conduit Fittings, Screw On Type, Snap-in construction, are applied on the lighting fixture to connect the metal flexible conduit and lampshade or rectifier to protect wires. This series of connector is proposed to fit with metal flexible conduit series PRWG and PRWA.

S31 series is certified by UL laboratory according to UL514B standards. The body is made of Nylon and the snap part is steel 65Mn with RoHS compliance. The fitting is pushed to fix to the knockouts of junction box and the metal flexible conduit is screwed-in to connect with the fitting.

S32 series is certified by UL laboratory according to UL514B and Canadian CSA-C22.2 No.56 standard. The body is made of steel 65MN with RoHS compliance. The fitting is pushed to fix to the knockouts of junction box and connected with metal flexible conduit by the paw.

S33 series is certified by UL laboratory according to UL514B and Canadian CSA-C22.2 No.56 standard. The body is made of carbon steel Q235 with RoHS compliance. The fitting is pushed to fix to the knockouts of junction box and the metal flexible conduit is screwed-in to connect with the fitting.
