PVC Non-metallic Mechanical Protection Tubing (NMPT)

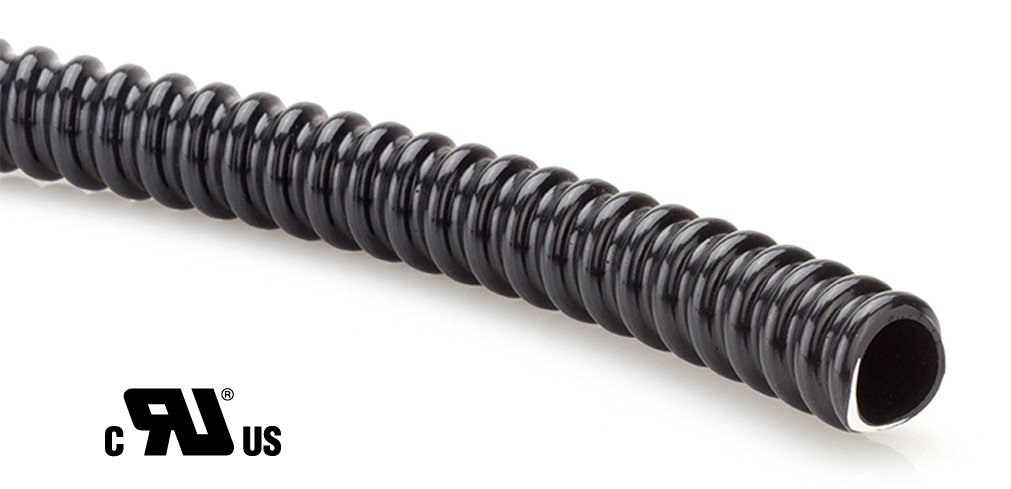

PVC Non-metallic Mechanical Protection Tubing (NMPT), PVC Flexible Corrugated Tubing - PLFNCB2 series is made of thermoplastic polyvinyl chloride (PVC) with smooth inside and corrugate outside surface. The material is compliant with RoHS requirement and featured to resist UV, age and oil. The NMPT extra flexible tubing integrates a reinforced member that enables higher flexibility and offers performance of self-support and crush resistance. It is also in lighter weight and easy to cut that is benefit for quick assembly on site. The best efficiency of water proof for whole wiring system is able to achieve by connecting with the liquid tight fitting series P50 to P53, PP60, PP63 and N161.
Widely used in Machine Tool, Renewable Energy, Telecommunications, etc.
Feature
-
Material:
Thermoplastic Polyvinyl Chloride (PVC) -
Temperature Range:
-18℃~+80℃ -
IP Rating:

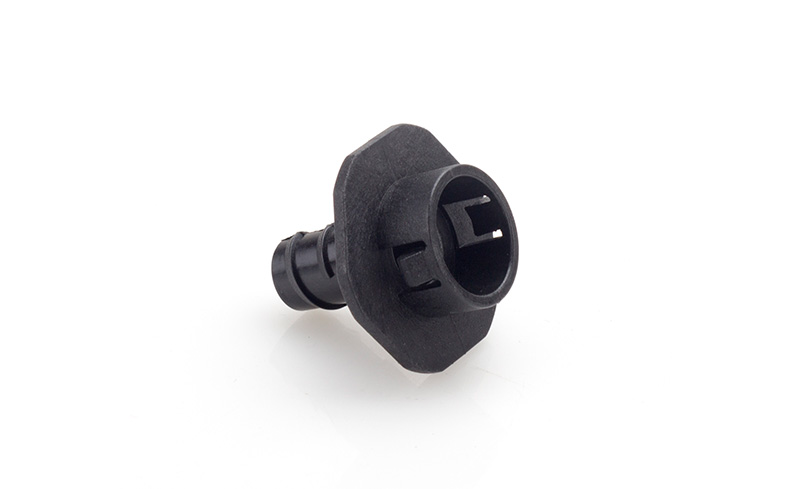

IP 66 (Fit with connector series: N161)
IP 68 (Fit with connector series: P50, P53, PP60 & PP63) -
Color :
Black/Grey -
Flexibility :
High -
Fire Retardant :
Self-extinguishing -
UV Resistance :
Yes -
Standard :
UL 1696, CSA 22.2 No. 227.3 -
Certificate :
Follow UL 1696 Standard, cURus (File No. E505697)
Parameter
| Nominal Conduit Size | Nominal Conduit Size | Part Number | ID (mm) | OD (mm) | Bending Radius (mm) | Package/Roll (ft/m) | Measurement (LxWxH mm) | Mated With |
|---|---|---|---|---|---|---|---|---|
| 10 | 1/4 | PLFNCB2-1/4 | 9.9~10.5 | 14.2~14.8 | - | - | - | - |
| 12 | 3/8 | PLFNCB2-3/8 | 12.29~12.80 | 17.53~18.03 | 51 | 100 / 30.5 | 340*340*170 |  |
| 16 | 1/2 | PLFNCB2-1/2 | 15.80~16.31 | 20.83~21.34 | 51 | 100 / 30.5 | 380*380*170 | |
| 21 | 3/4 | PLFNCB2-3/4 | 20.83~21.34 | 26.16~26.67 | 76 | 100 / 30.5 | 450*450*180 | |
| 27 | 1 | PLFNCB2-1 | 26.44~27.08 | 32.77~33.40 | 76 | 100 / 30.5 | 510*510*210 | |
| 35 | 1-1/4 | PLFNCB2-1-1/4 | 35.05~35.81 | 41.40~42.16 | 127 | 100 / 30.5 | 600*600*270 | |
| 41 | 1-1/2 | PLFNCB2-1-1/2 | 40.01~40.64 | 47.37~48.26 | 127 | 100 / 30.5 | 730*730*220 | |
| 53 | 2 | PLFNCB2-2 | 51.31~51.94 | 59.44~60.33 | 127 | 50 / 15.3 | 800*800*200 | |
