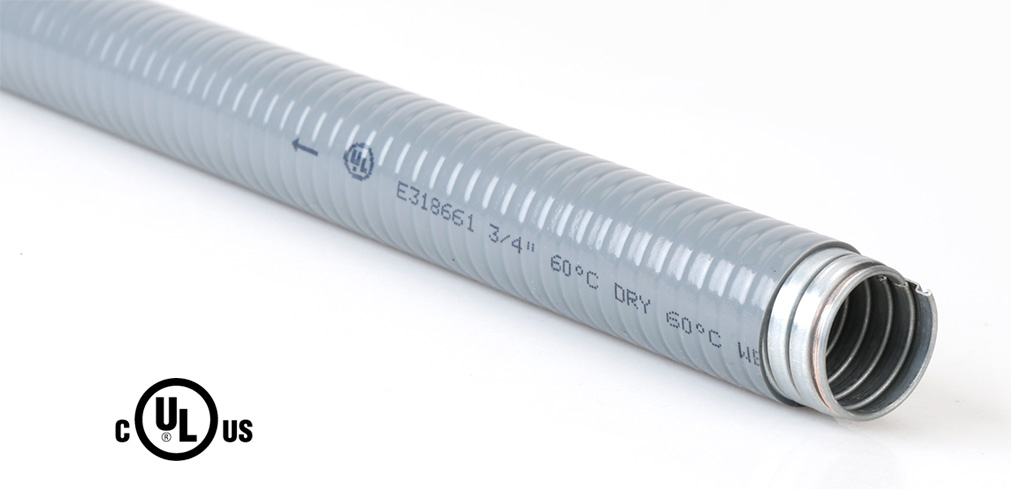

Liquid Tight Flexible Metal Conduit (Hi-Low Temperature)
Liquid Tight Flexible Metal Conduit (LFMC, Hi-Low Temperature) - PHLTG series is applicable for the protection of circuit with 600 volts or lower in locations where cULus certificate is required and in high or low temperature or having large temperature differences, such as refrigeration system, steelworks, wiring system in places close to polar region or desert, etc.
Widely used in Refinery and Petrochemical Plant, Rail, Transit and etc.
Feature
-
Material:
Galvanized Steel + PVC Jacket -
Temperature Range:
-50~+105℃ Dry, 75℃ Oil (for cUL)
-55~+105℃ Dry, 70℃ Oil, 60℃ Wet (for UL) -
IP Rating:
IP 40 (Fit with connector series: S52)
IP 66 (Fit with connector series: S50, S51 & S53) -
Jacket Color :
Grey (Standard), other colors are available by consult. -
Flexibility :
Medium -
Fire Retardant :
Self-extinguishing -
UV Resistance :
Yes -
Certificate :
cULus (File No.: E318661)
Parameter
| Nominal Conduit Size | Nominal Conduit Size | Part Number | ID (mm) | OD w/Jacket (mm) | Bending Radius (mm) | Package/Roll (ft/m) | Measurement (LxWxH mm) | Mated With |
|---|---|---|---|---|---|---|---|---|
| 12 | 3/8 | PHLTG1-3/8 | 12.29~12.80 | 17.50~18.00 | 60.8 | 100 / 30.5 | 440*440*140 |  |
| 16 | 1/2 | PHLTG1-1/2 | 15.80~16.31 | 20.80~21.30 | 92.55 | 100 / 30.5 | 440*440*160 | |
| 21 | 3/4 | PHLTG1-3/4 | 20.83~21.34 | 25.20~26.70 | 117.95 | 100 / 30.5 | 500*500*180 | |
| 27 | 1 | PHLTG1-1 | 26.44~27.08 | 32.80~33.40 | 175.1 | 100 / 30.5 | 600*600*300 | |
| 35 | 1-1/4 | PHLTG1-1-1/4 | 35.05~35.81 | 41.40~42.20 | 213.2 | 50 / 15.3 | 750*750*130 | |
| 41 | 1-1/2 | PHLTG2-1-1/2 | 40.01~40.64 | 47.40~48.30 | 238.6 | 50 / 15.3 | 750*750*250 | |
| 53 | 2 | PHLTG2-2 | 51.31~51.94 | 59.40~60.30 | 292.6 | 25 / 7.6 | 900*900*120 | |
